2D echocardiography uses ultrasound waves to produce moving images of the heart. Unlike an ECG, which records electrical activity, an echocardiogram allows the cardiologist to examine the heart’s chambers, walls, valves, and pumping movements.
The test is commonly recommended for patients with breathlessness, swelling, a heart murmur, persistent high blood pressure, previous heart attack, or suspected heart failure. It may also be used to monitor an already diagnosed valve or heart-muscle condition.
What Can a 2D Echo Show?
The images obtained during echocardiography can help assess:
- The size and shape of the heart chambers
- The thickness of the heart muscle
- Overall pumping strength
- Movement of different heart-wall segments
- Structure and motion of the valves
- Fluid around the heart
- Certain congenital structural abnormalities
- Possible clots or abnormal masses in selected situations
One measurement frequently discussed after an echo is the ejection fraction. This estimates how much blood the left ventricle pumps out with each contraction. It is useful, but it is not the only measure of heart health.
A person may have symptoms despite a preserved ejection fraction. Conversely, a reduced value needs to be understood in relation to the underlying condition and clinical findings.
What Happens During the Examination?

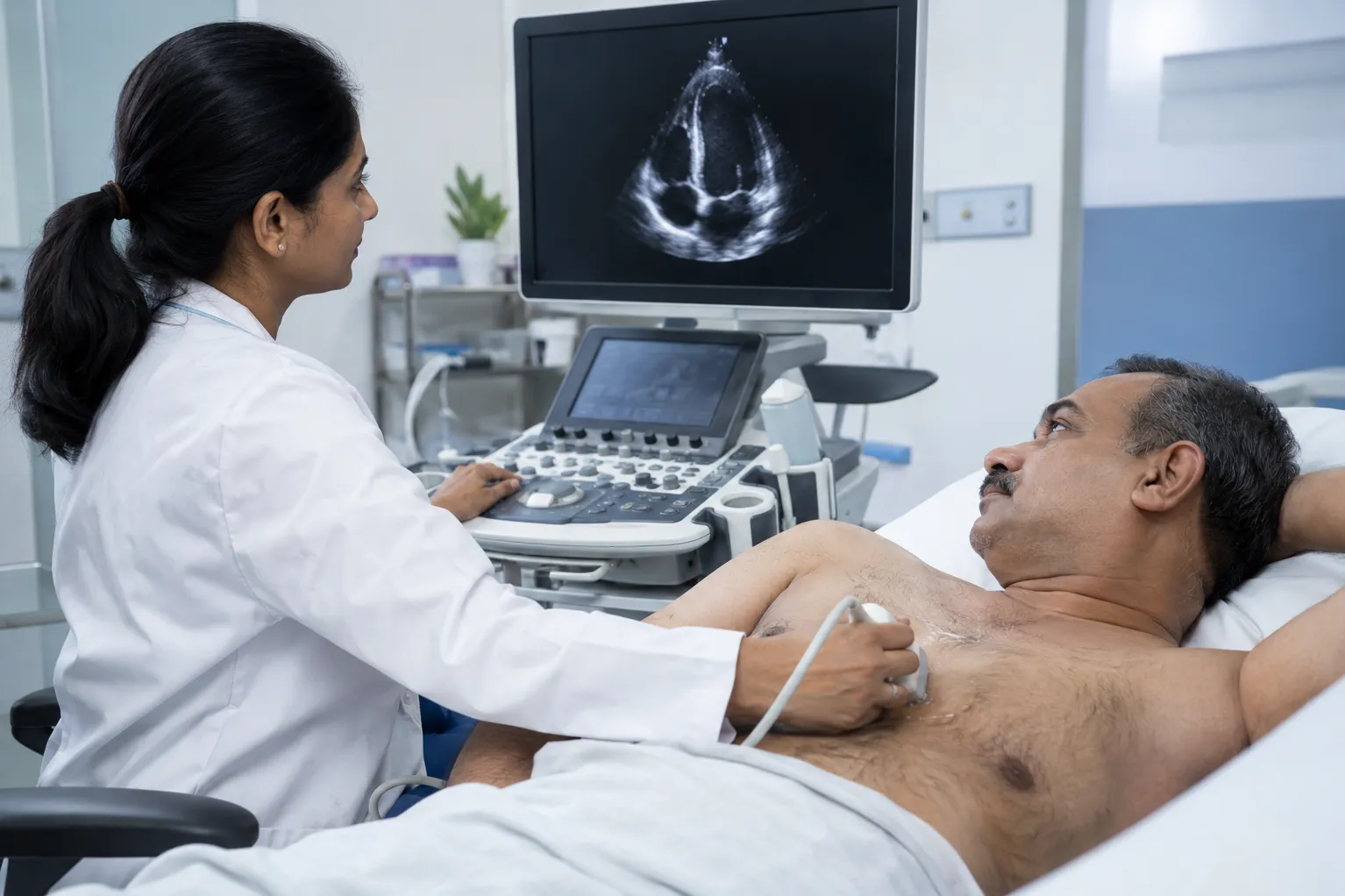

For a standard transthoracic echo, the patient usually lies on the examination couch, often partly turned onto the left side. Gel is applied to the chest, and a handheld probe called a transducer is moved across different positions.
The probe sends sound waves into the body and receives returning echoes. A computer converts these signals into images. A routine 2D echo is generally painless and does not use ionising radiation.
The person performing the test may ask the patient to change position or briefly hold their breath to obtain clearer views. The duration can vary according to the images required and the complexity of the condition.
Is 2D Echocardiography the Same as Colour Doppler?
These terms are related but not identical.
Two-dimensional imaging primarily shows the heart’s anatomy and movement. Colour Doppler adds information about the direction and pattern of blood flow. Doppler measurements can help assess whether a valve is narrowed, whether blood is leaking backwards, or whether pressures may be elevated.
In practice, a comprehensive echocardiographic assessment may combine 2D imaging with colour and spectral Doppler. The exact components depend on the clinical question.
Who May Need Repeat Echocardiography?
A repeat test is not automatically required at fixed intervals for everyone. The cardiologist may recommend follow-up imaging when:
- Symptoms have changed
- A valve disorder requires monitoring
- Heart-pumping function was previously reduced
- Treatment response needs evaluation
- A new murmur or clinical finding appears
- A procedure has been performed
- Another medical treatment could affect cardiac function
Repeating the test without a clear reason may not provide useful new information. The timing should reflect the condition and the patient’s clinical progress.
Preparing for a 2D Echo
A standard transthoracic echo usually requires little preparation. Patients can generally eat, drink, and take their medicines as usual unless given specific instructions. Previous reports should be carried for comparison.
Heart Beat Super Speciality Clinic evaluates patients who require 2D echocardiography in Pune, including those travelling from PCMC, Wakad, and nearby localities. The report should be discussed with a cardiologist rather than interpreted through a single number or unfamiliar phrase.
According to the American Heart Association’s echocardiography overview, an echo can provide information about heart structure, pumping action, valves, and blood-flow abnormalities. The test becomes most useful when its findings are connected to the patient’s symptoms and examination.
